Herolaser 1500W Handheld Fiber Laser Welding portable welder Equipment Machine L

Laser welding machine
Herolaser handheld laser welding machine, is using the latest generation of fiber laser module, adopting independent research and development of wobble welding head, fill the blank of the handheld laser welding industry. It is with advantages of simple operation, beautiful welding appearance, high welding speed, no consumables, for thin stainless steel plate, iron plate, galvanized sheet, such metal material welding works, It can perfectly replace traditional argon arc welding, electric welding and other processes. Hand-held laser welding machine can be widely used in cabinet, kitchen, stairs, elevators, shelves, ovens, stainless steel doors and Windows guardrail, distribution box, stainless steel home and other industries complex irregular welding process.
Make an inquiry now
Product introduction

Parameter
Machine Parameters
Size
650x300x621[mm](L×W×H)
Weight
75[kg]
Optical Parameters
Output Power (Watt)
 1500W
Working Mode
CW/Modulating Pulse Linear Array/Timing
Output Power Adjusting Range (%)
1-100%
Laser Wavelength (nm)
1075 ± 10 nm
Output Power Undulate Range
 <5%
Max Modulation Frequency
50KHZ
Laser Response Time
<10us
Indicating Laser Wavelength
650
Indicating Light Adjusting Range
<1mW
Conduction System Parameters
Port Type
Automatic Wire Feeding Welding Head
Collimating Focal Distance
50mm
Focusing Distance
150mm
Transmission Length
Standard 5±0.5m, (Optional 10m)
Conduction System Parameters
Cooling and Protection Gas
Inert Gas
Working Ambient Temperature
10-50 ℃
Working Ambient Humidity
 ≤85 degree
Input Voltage
220 VAC/50Hz/60Hz
Machine Power
 ≤ 4.8KW


Laser Head Welding Depth Data (Wobble Head)

Power
SS
Carbon Steel
Galvanized Plate
500W
0.5-0.8mm
0.5-0.8mm
0.5-0.8mm
800W
0.5-1.2mm
0.5-1.2mm
0.5-1.0mm
1000W
0.5-1.5mm
0.5-1.5mm
0.5-1.2mm
2000W
0.5-3mm
0.5-3mm
0.5-2.5mm
Products Description

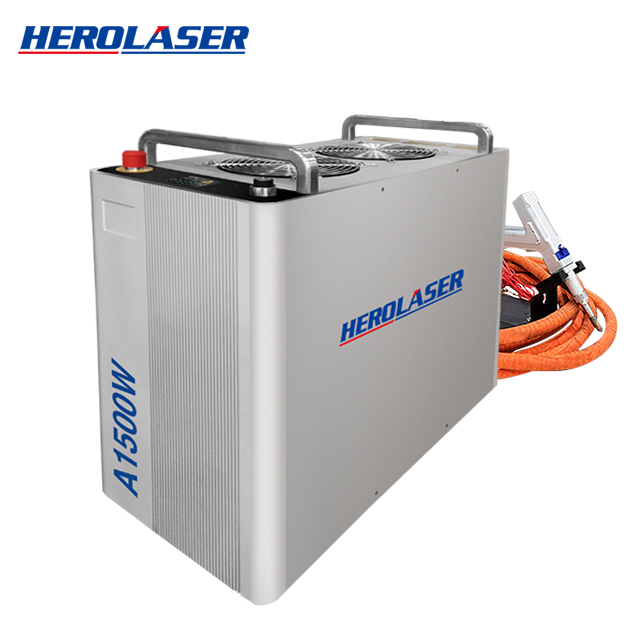

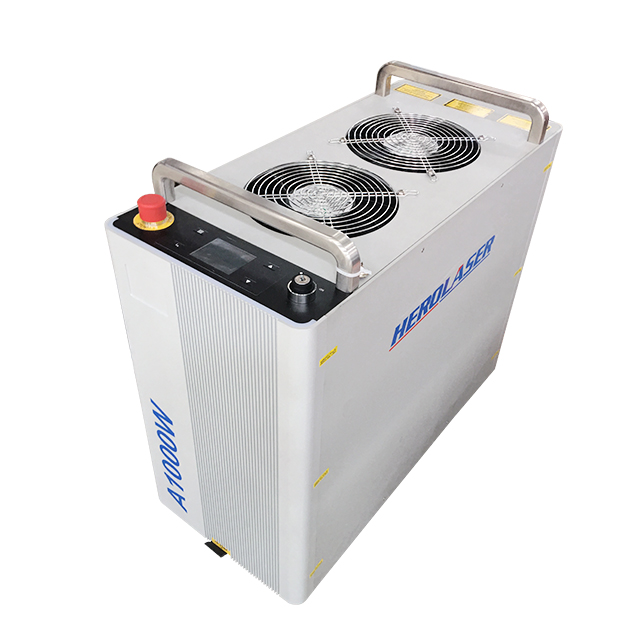

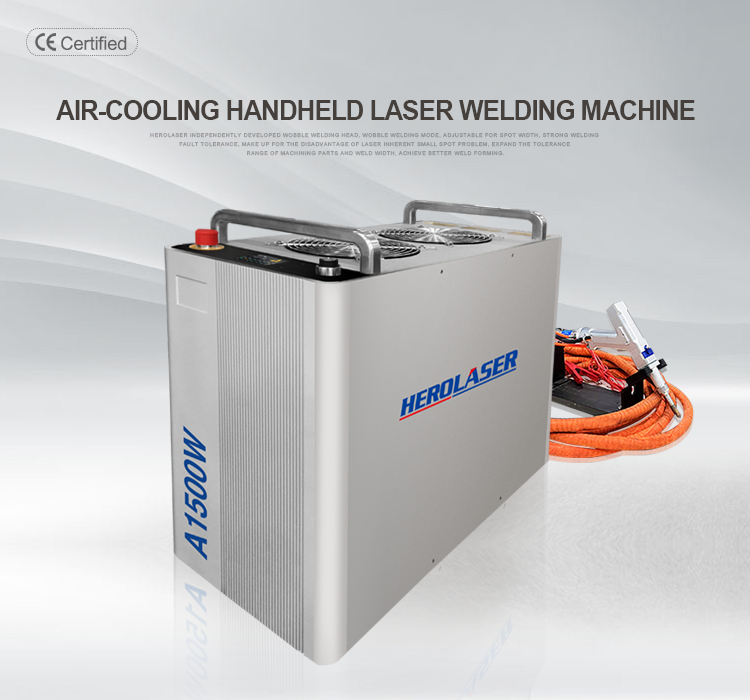

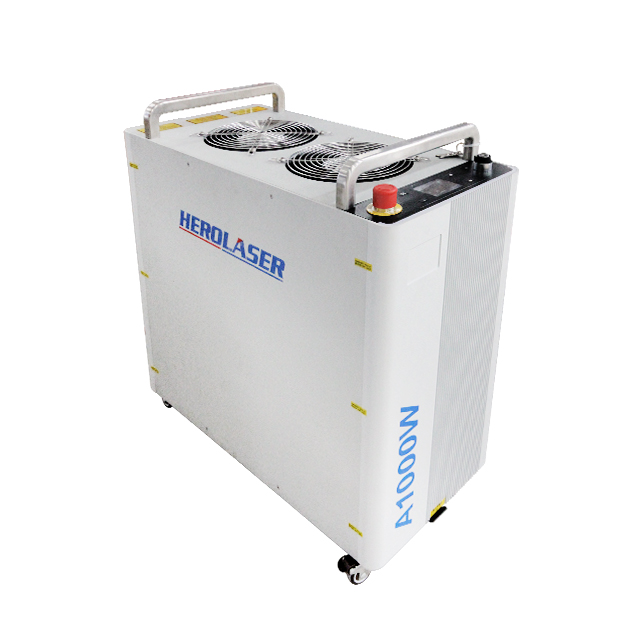

Air-cooling Handheld Fiber Laser Welding Machine

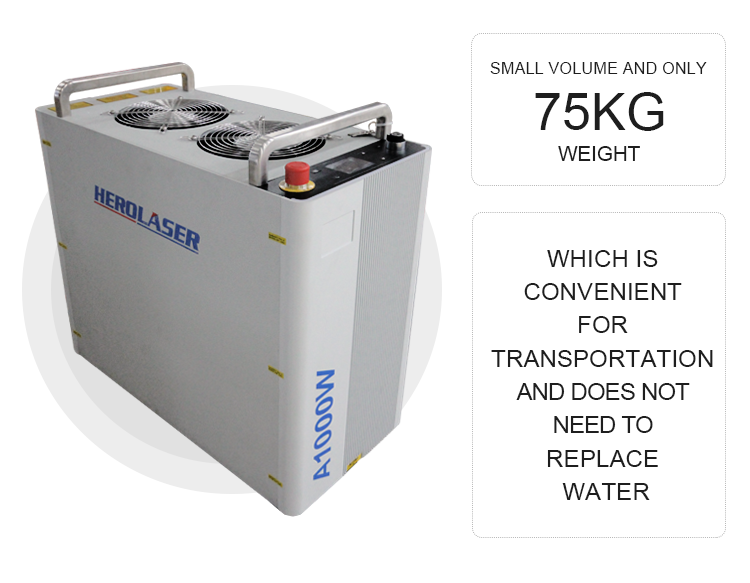

On present sales of 1000W and 1500W air-cooling laser welders. The advantage lies in the high internal integration, small volume and only 75KG weight, which is convenient for transportation and does not need to replace water.
Characteristics

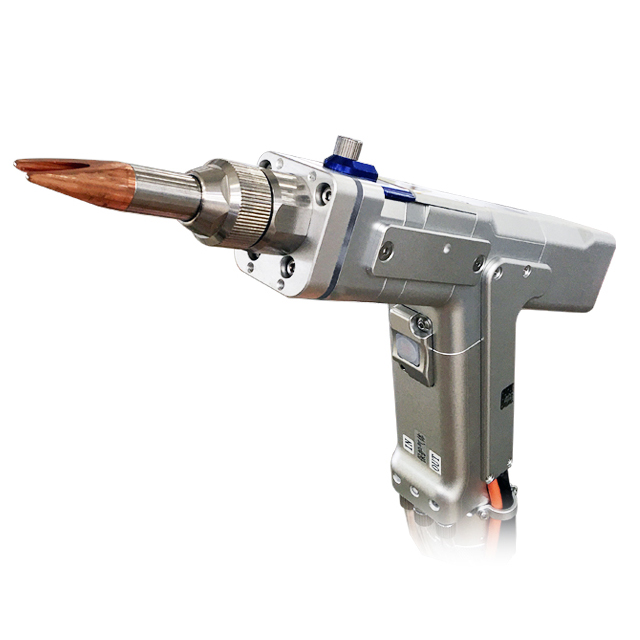

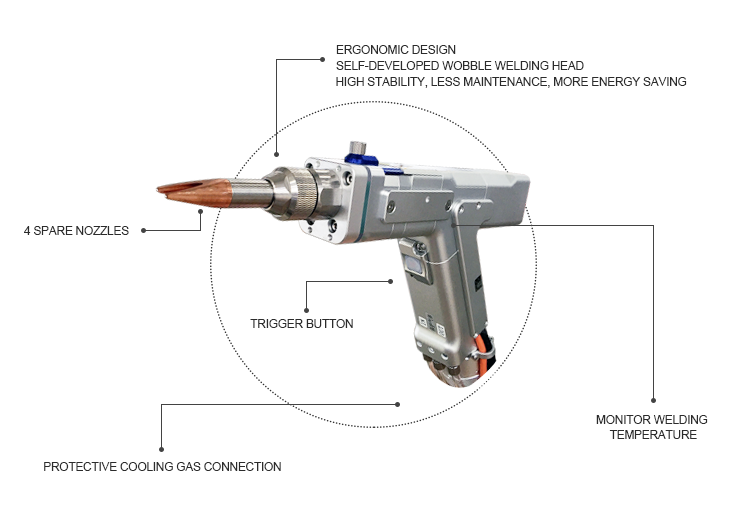

Independent R&D Wobble welding head

Independent R&D Wobble welding head, swing welding mode, laser spot width can be adjusted, welding fault tolerance is strong,make up for the disadvantage of laser welding light spot too small , expand the machining parts tolerance range and weld width, to get better weld forming.

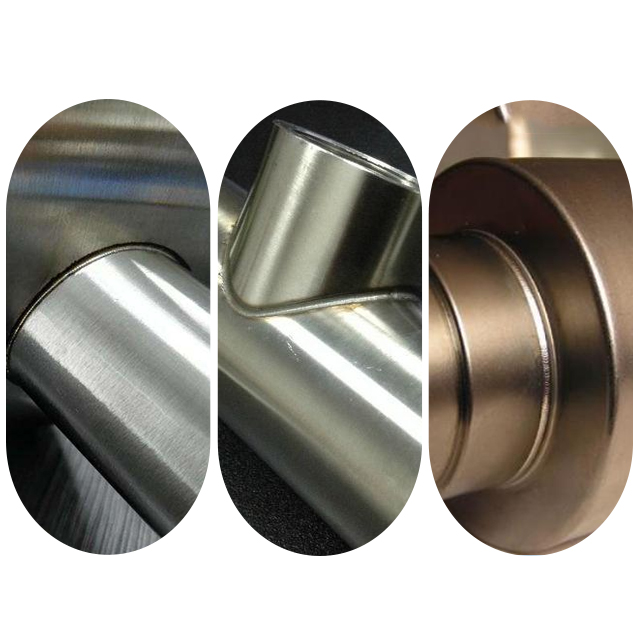

Technological Characteristics

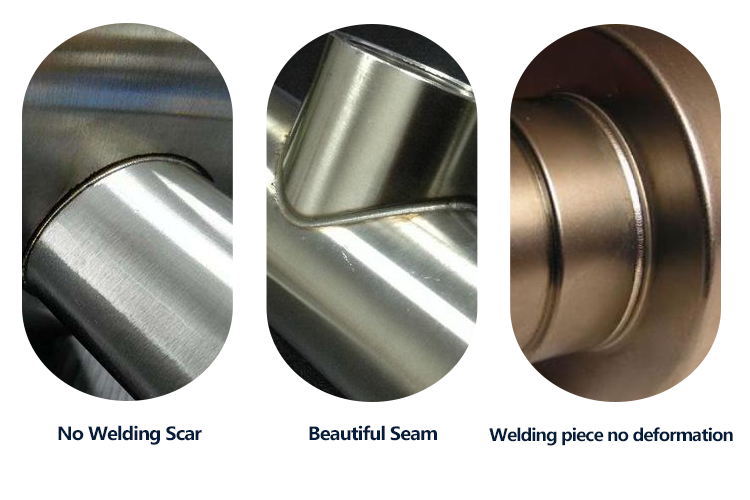

The welding seams are smooth and beautiful, the pieces have no deformation, no welding scar, and the welding is firm enough to reduce the subsequent grinding process, saving time and cost.

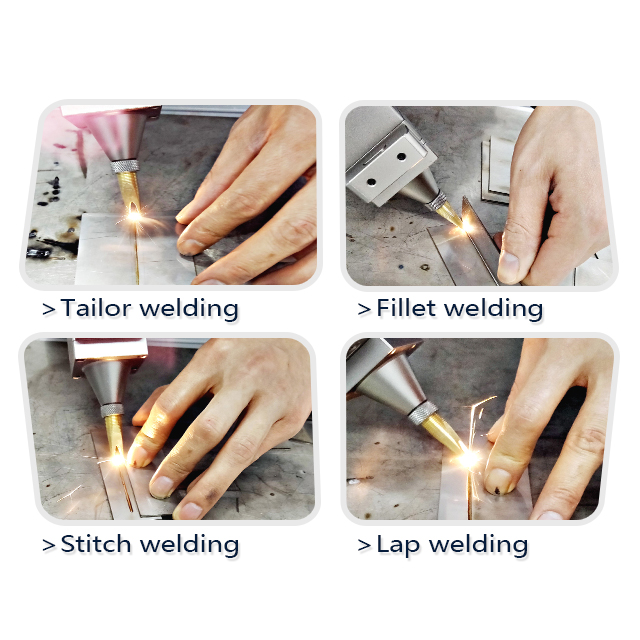

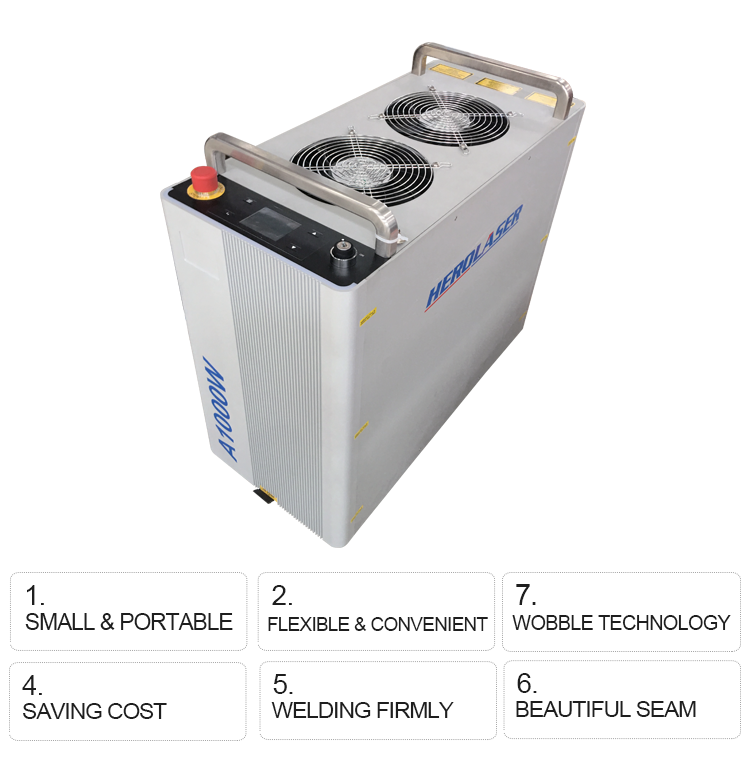

Advantages of handheld laser welding machine

Simple operation, can be easily operated with simple training; beautiful products can be welded one take without a master

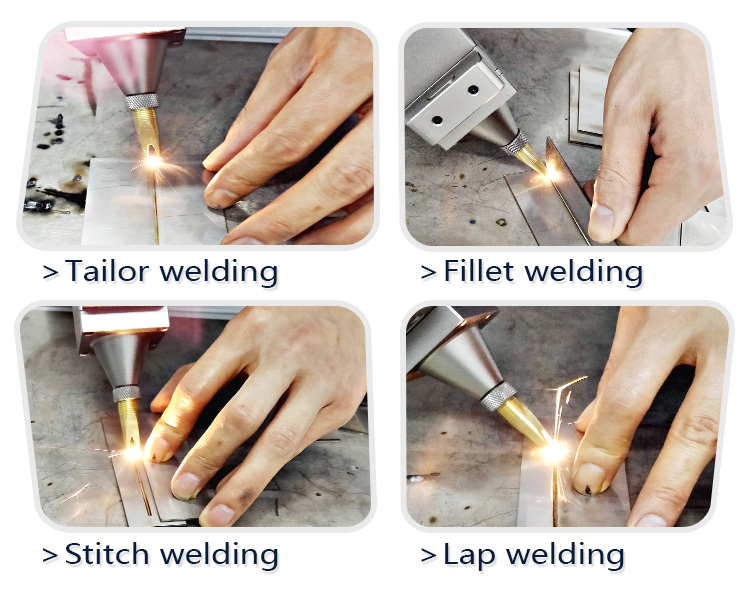

WOBBLE handheld laser head, light and flexible, can weld any part of the workpiece, making the welding work more efficient,safe,energy-saving and environmentally friendly.
Applicable Industry

  Domestic Appliance

Air & Ship

                    Auto Parts

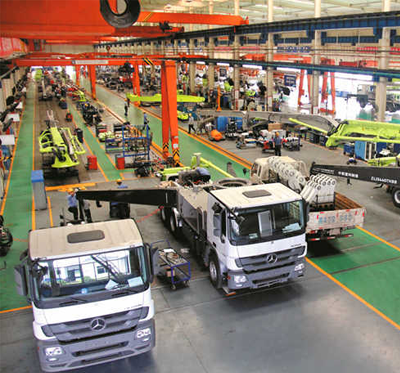

     Machinery Manufacture

        Medical Equipment

     Elevator Manufacturing

Company Information

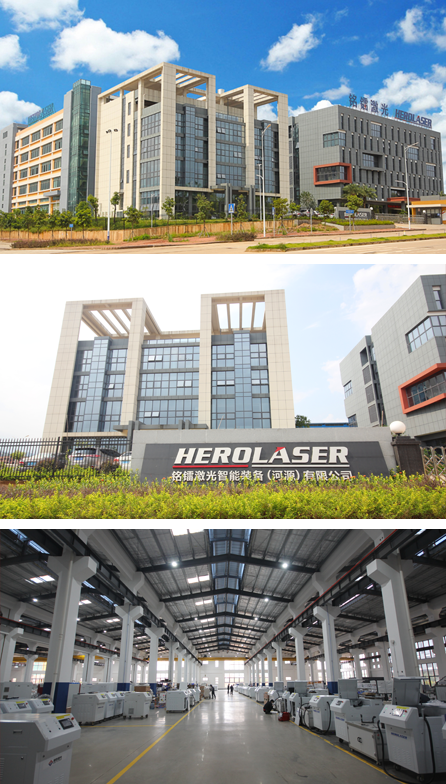

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

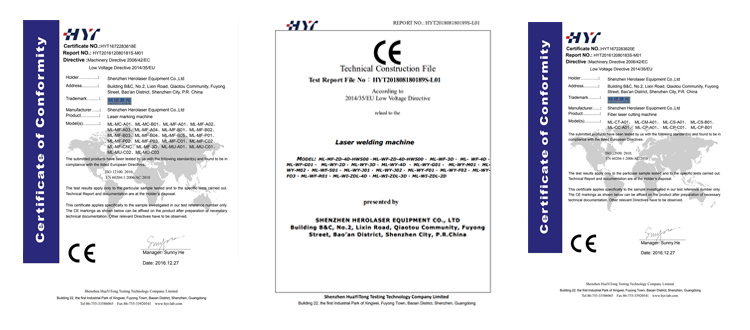

Certification

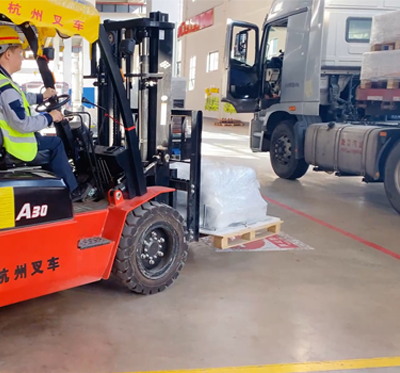

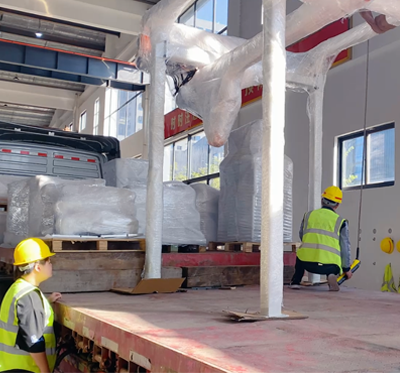

Packaging & Shipment
Our Services

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service

FAQ

1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.


2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay


3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.


4. Can I visit the factory?
Available to have a visit to our factory at any time.


5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.


6. Can I go to the factory to test the machine before shipment?
Of course you can.


7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.


8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.


9.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.


10.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
